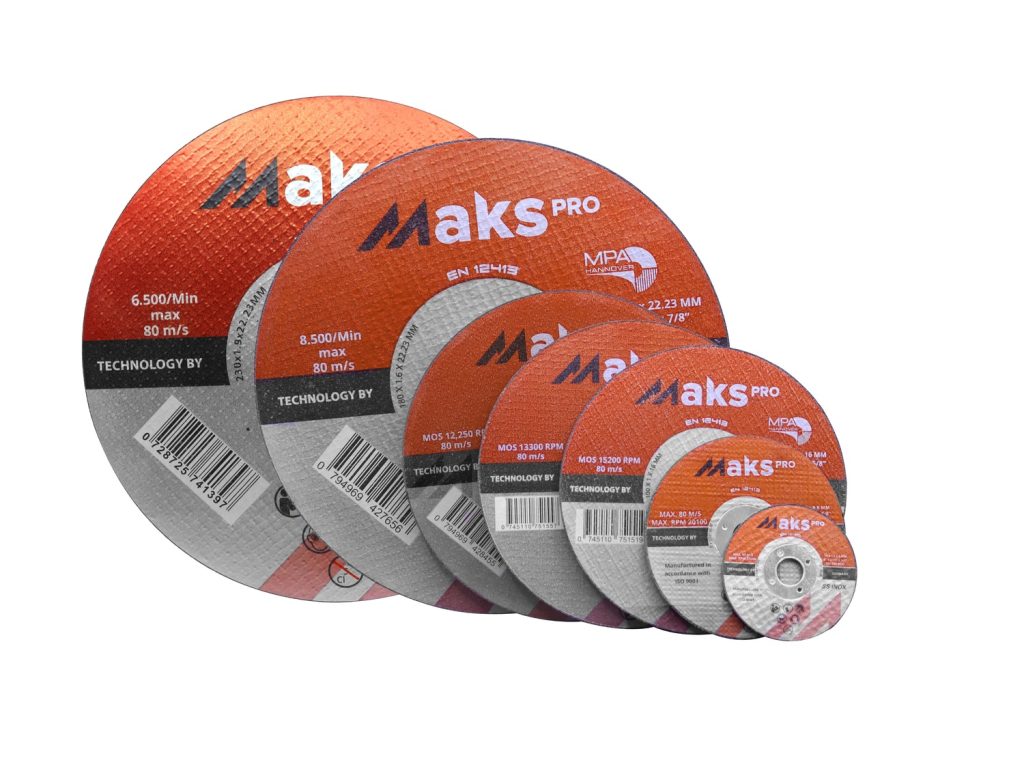

STAINLESS STEEL Thin Cutting Disc

Is Ideal for cutting of the Stainless steel sheets, rods, rebars, plates, pipes, channels and many more. Makspro cutting disc are designed for extra heavy duty cutting applications

HANDLING & USAGE

Match RPM of wheel with Machine RPM before mounting the wheel

Product Code	MKTCD40-1	MKTCD45-1	MKTCD45-16	MKTCD70-1	MKTCD70-16
Usage	Cutting Disk	Cutting Disk	Cutting Disk	Cutting Disk	Cutting Disk
Product Dimension	100 x 0.6 x 16 MM	115 x 1 x 22.23 mm	115 x 1.6 x 22.23 MM	180 x 1 x 22.23 mm	180 x 1.6 x 22.23 MM
Diameter	100mm	115mm	115mm	180mm	180mm
Thickness	1.00 MM	1.00 MM	1.6 MM	1.00 MM	1.6 MM
Hole Diameter	16mm	22.23mm	22.23mm	22.23mm	22.23mm
Product Type	Type 41	Type 41	Type 41	Type 41	Type 41
Product Shape Description	FLAT CENTERED CUTTING WHEEL	FLAT CENTERED CUTTING WHEEL	FLAT CENTERED CUTTING WHEEL	FLAT CENTERED CUTTING WHEEL	FLAT CENTERED CUTTING WHEEL
Maximum Operating Speed	80 m/s	80 m/s	80 m/s	80 m/s	80 m/s
Maximum Revolution	15,300 U/min	13,300 U/min	12,250 U/min	8,500 U/min	8,500 U/min
Suitable for	Stainless steel/INOX	Stainless steel/INOX	Stainless steel/INOX	Stainless steel/INOX	Stainless steel/INOX
Standard	EN12413	EN12413	EN12413	EN12413	EN12413
Certification	MPA	MPA	MPA	MPA	MPA

RIGHT WORK POSITION

90° regarding to the piece for wheel Thickness from 0.8 up to 4.0mm
Use the disc in an appropriate machine
Do not exceed the maximum operation speed marked on the wheel label
Depressed center discs of diameter of 100-230 mm should be mounted with flanges of a diameter of 39-42 mm
Do not alter the bore of the disc; do not force it into the spindle and ensure that there is not excessive play between the two.
Wheels should be exposed at max angle of 1800 on portable machine and max angle of 1800 on fixed machine.
Use only machines with Safety Guards
Always use personal Safety Equipments
