CO2 single-stage regulator

CO2 single-stage regulator

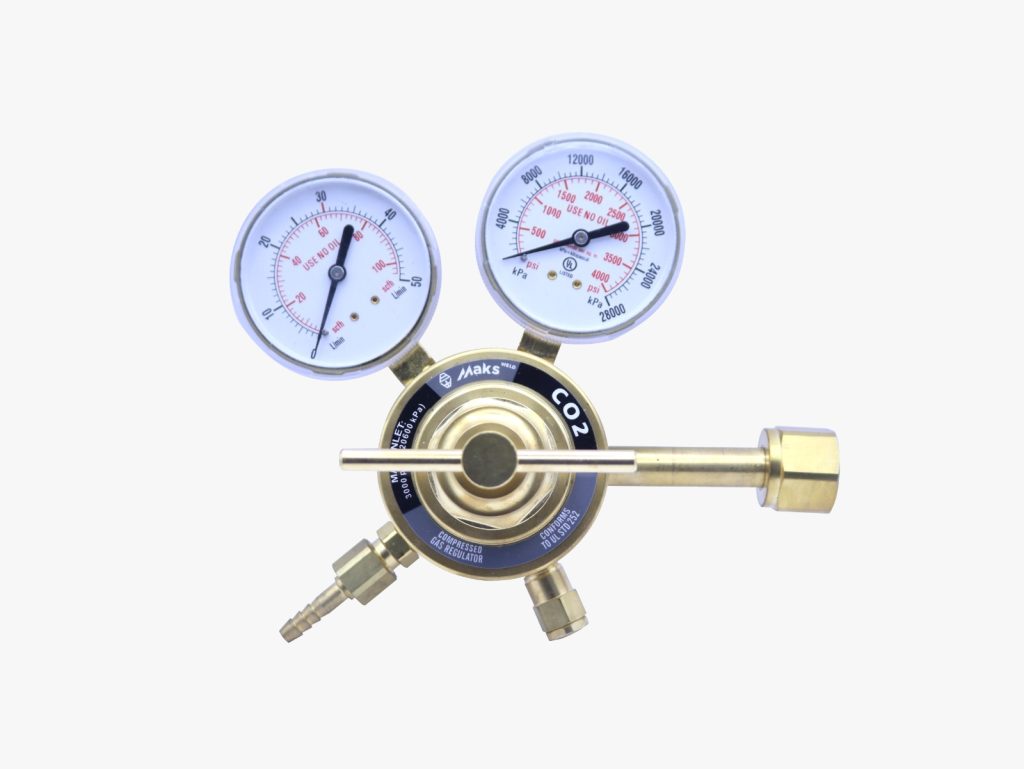

MAKSWELD Carbon Dioxide single-stage regulator is designed to be compact, lightweight, medium to heavy-duty and rugged. Regulator provides accurate pressure regulation that is ideal for most industrial applications. It comes with 2 1/2″ dual brass gauge and chrome-plated bonnet with brass adjusting screw for smooth adjustment. regulator incorporates 320 CGA-inlet and minimum 9/16″ right-handed outlet with self-reseating internal HP safety valve for safety. It features one-piece encapsulated seat design with an internal filter and a PTFE Teflon® seat. It is equipped with forged brass body and it conforms to CGA-E-4 standard for gas pressure regulators.

Industry

Industrial and General Fabrication

  • General Manufacturing
  • Heavy Fabrication
  •  Repair and Maintenance
  • Structural Steel Fabrication
  • Civil Construction



Caution

  •  NOTE: Regulators will deliver at least the stated upper range and in some cases may exceed the stated upper
    range



Model MKR-6250-02
Gas Service CO2
BODY BRASS
Delivery Range (PSIG) 145
Max inlet
pressure (PSIG)
3000
Rated Flow 0-25L/min
Inlet connector CGA320
Outlet Connector 9/16RH
  • Brass bonnet and body
  • One piece encapsulated seat design with an internal filter and a PTFE Teflon seat
  • Bronze adjusting screw for smooth adjustment
  • 2 1/2″ dual scale gauges
  • Featured in the pipeline classic outfits
  • Tamper proof, self reseating, internal HP safety valve



Specifications

  • UL® Standard
