NITROGEN REGULATOR

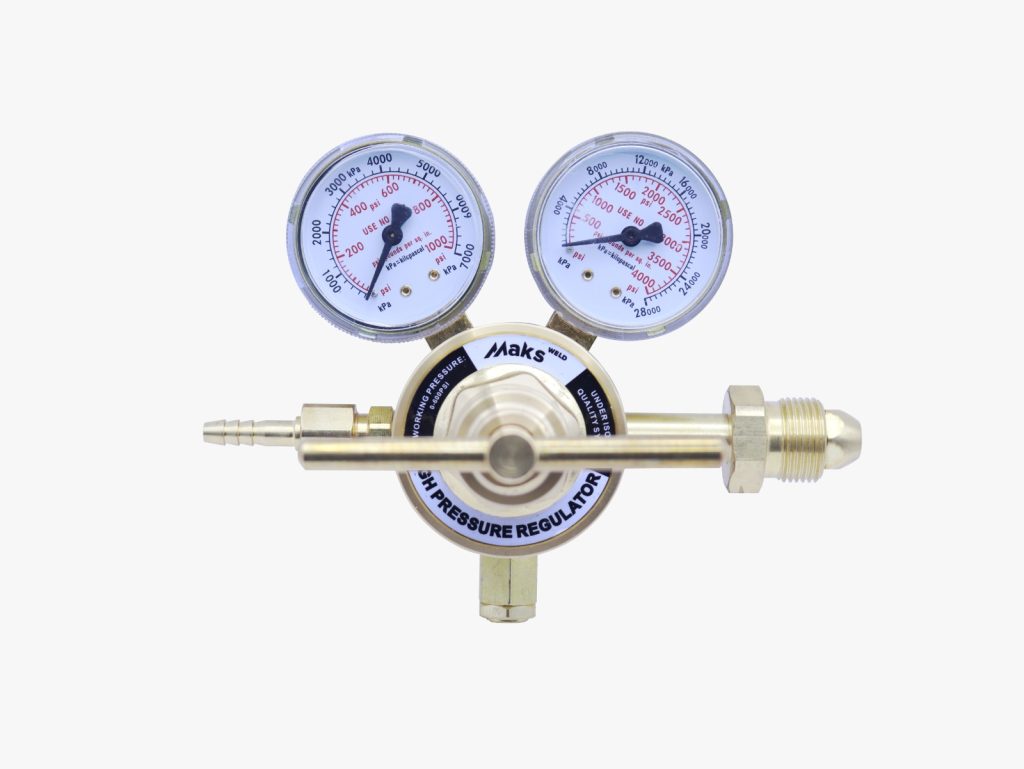

Maksweld high-pressure nitrogen regulator is a device used to control the flow and reduce the pressure of nitrogen gas from a high-pressure source, such as a nitrogen gas cylinder, to a usable level for various applications. These regulators are essential in industries like manufacturing, laboratory work, and even in some automotive applications.

Industry

Industrial and General Fabrication
General Manufacturing
Heavy Fabrication
Repair and Maintenance
Structural Steel Fabrication
Civil Construction

Caution

NOTE: Regulators will deliver at least the stated upper range and in some cases may exceed the stated upper range

Standard

Confirmed with EN ISO 2503

Inlet Pressure: Typically, nitrogen cylinders can have pressures as high as 4,000 psi. The regulator is designed to handle these high pressures.
Outlet Pressure: The regulator reduces the high pressure to a safe, usable pressure, which can range from 100 to 2100 psi
Gauge(s): A high-pressure regulator usually has two gauges: one to show the pressure in the cylin- der (inlet gauge) and one to show the regulated, reduced pressure (outlet gauge).
Adjustment Knob: This allows users to adjust the outlet pressure by increasing or decreasing the flow of nitrogen.
Safety Features: Some regulators are equipped with safety valves to release excess pressure in case of malfunction.

GAS SERVICE	NITROGEN
MODEL	MKR-6260-N2H
BODY	BRASS
Delivery Range	600 PSI
Max inlet pressure (PSI)	UP TO 3000
Rated Flow	0-25 L/min
Inlet Connector	CGA580
Outlet Connector	9/16 H

Brass bonnet and body
One piece encapsulated seat design with an internal filter and a PTFE teflon seat
Bronze adjusting screw for smooth adjustment
21/2″ dual scale gauges
Featured in the pipeliner classic outfits
Tamper proof, self reseating, internal HP safety valve
