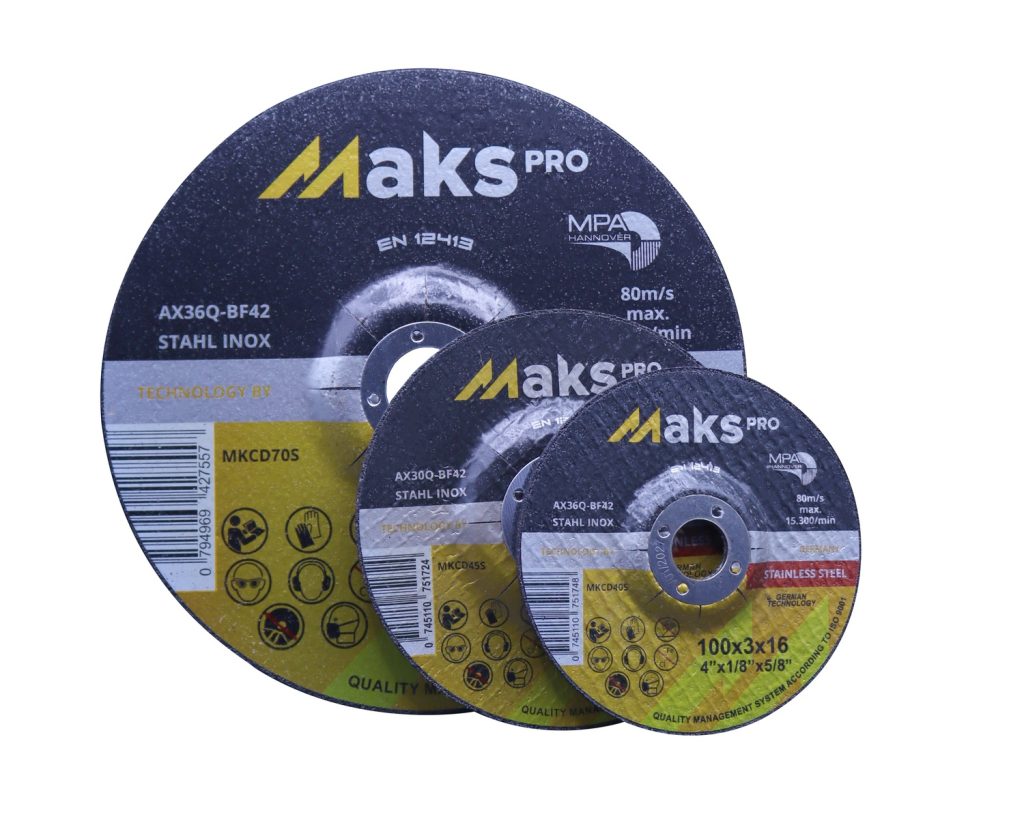

STAINLESS STEEL Cutting Disc

STAINLESS STEEL Cutting Disc

  • Model Number -
  • Designed for extra heavy duty cutting applications
Is ideal for cutting of the Stainless sheets, rods, rebars, plates, pipes, channels and many more. All Stainless steel cutting discs are made off with premium aluminium oxide grains.

HANDLING & USAGE

Match RPM of wheel with Machine RPM before mounting the wheel.







Product Code MKCD40S MKCD45S MKCD50MS MKCD70S MKCD90S
Usage Cutting Disk Cutting Disk Cutting Disk Cutting Disk Cutting Disk
Product Dimension 100×3.0x16mm 115×3.2×22.3mm 125×3.2×22.3mm 180×3.2×22.3mm 230×3.2×22.3mm
Diameter 100mm 115mm 125mm 180mm 230mm
Thickness 3.00mm 3.2mm 3.2mm 3.2mm 3.2mm
Hole Diameter 16mm 22.23mm 22.23mm 22.23mm 22.23mm
Product Type Type 42 Type 42 Type 42 Type 42 Type 42
Product Shape Description Depressed Center Cutting Wheel Depressed Center Cutting Wheel Depressed Center Cutting Wheel Depressed Center Cutting Wheel Depressed Center Cutting Wheel
Maximum Operating Speed 80 m/s 80 m/s 80 m/s 80 m/s 80 m/s
Maximum Revolution 15,300 U/min 13,300 U/min 12,250 U/min 8,500 U/min 6,650 U/min
Suitable for Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
Standard EN12413 EN12413 EN12413 EN12413
Certification MPA MPA MPA MPA MPA

RIGHT WORK POSITION

  • 90° regarding to the piece for wheel Thickness from 0.8 up to 4.0mm
  • Use the disc in an appropriate machine
  • Do not exceed the maximum operation speed marked on the wheel label
  • Depressed center discs of diameter of 100-230 mm should be mounted with flanges of a diameter of 39-42 mm
  • Do not alter the bore of the disc; do not force it into the spindle and ensure that there
  • is not excessive play between the two. Wheels should be exposed at max angle of 1800 on portable machine and max angle of 1800 on fixed machine.
  • Use only machines with Safety Guards Always use personal Safety Equipment’s
