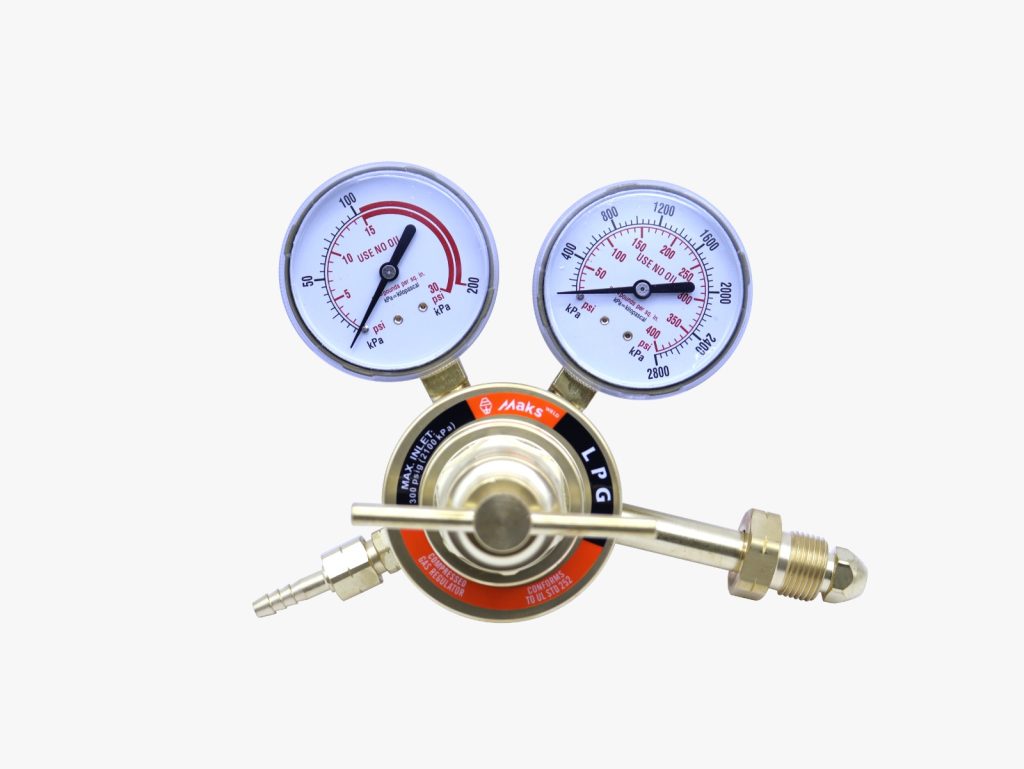

Maksweld propane single-stage regulator

Maksweld propane single-stage regulator is designed to be compact, lightweight, medium to heavy-duty and rugged. Regulator provides accurate pressure regulation that is ideal for most industrial applications. It comes with 2 1/2 dual brass gauges and chrome-plated bonnet with brass adjusting screw for smooth adjustment. Regulator incorporates 510 CGA-inlet and minimum 9/16 left-handed outlet with self-reseating internal HP safety valve for safety. It features one-piece encapsulated seat design with an internal filter and a PTFE Teflon® seat. It is equipped with forged brass body and it conforms to CGA-E-4 standard for gas pressure regulator

Industrial and General Fabrication

General Manufacturing
Heavy Fabrication
Repair and Maintenance
Structural Steel Fabrication
Civil Construction

Caution
NOTE: Regulators will deliver at least the stated upper range and in some cases may exceed the stated upper range

GAS SERVICE	PROPANE
Model	MKR-6240-02
BODY	BRASS
Delivery Range (PSIG)	14.5
Max Inlet Pressure (PSI)	300
Rated Flow	0-25L/min
Inlet Connector	CGA510
Outlet Connector	9/16LH

Specifications
UL® Standard

Brass bonnet and body
One piece encapsulated seat design with an internal filter and a PTFE Teflon seat
Bronze adjusting screw for smooth adjustment
2 1/2″ dual scale gauges
Featured in the pipeliner classic outfits
Tamper proof, self reseating, internal HP safety valve
