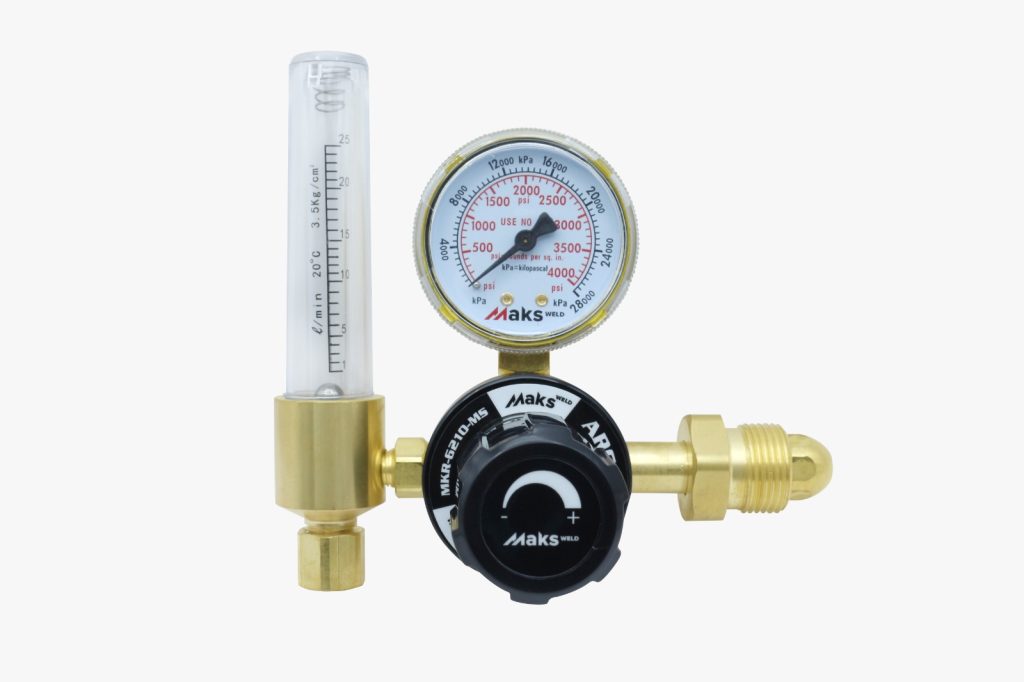

Argon Regulator Multi Stage is a precision gas control device designed to deliver stable, consistent, and accurate outlet pressure from high-pressure gas cylinders. Featuring a two-stage pressure reduction system, it progressively lowers cylinder pressure to the requiredworking pressure, ensuring minimal pressure, ensuring minimal pressure fluctuation even as cylinder pressure decreases.
Model
MKR-6210M-MS
Gas
ARGON
Max Input pressure(Bar)
200
Working pressure(Bar)
6
Flow (m3/h)
25L/min
ENTRY
SIDE/BOTTOM
Inlet Connector
CGA580
Outlet Connector
9/16
Designed for TIG and MIG welding processes, giving the welder accurate and precise flow control.
Mini Multi stage gas saver especially suit for DIY welder.
Strong forged brass body for maximum strength.

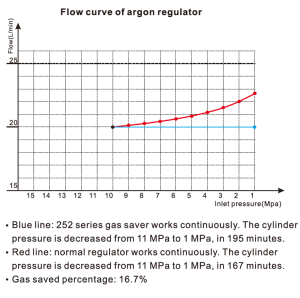

Two-stage ensure the stable pressure and flow, Can save Argon or CO2 with 16%.
First Stage in Piston type construction reduces full cylinder pressure by approximately 90%Second stage in Diaphragm type construction accurately controls flow and delivery pressure.
Non removable adjustment knob.
Our product is in conformity to the standard EN ISO 2503.
100% leak testing, pressure test,function test and visual inspection.
