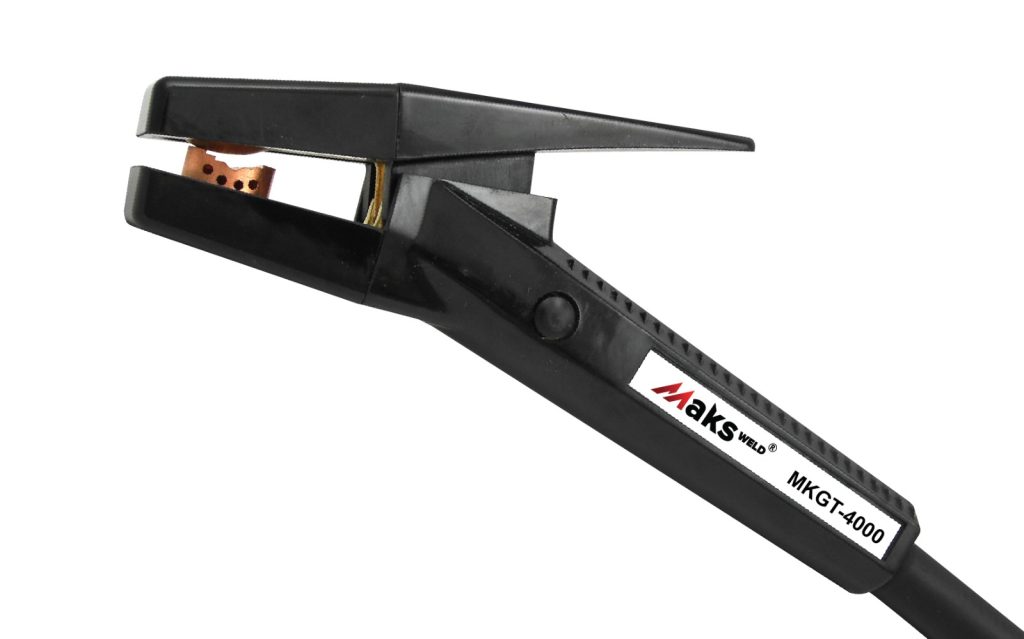

AIR – CARBON ARC GOUGING TORCH MKGT-4000

Maksweld MKGT- 4000, 1,000 Air -Carbon Arc gouging torch is a heavy-duty tool for air-carbon arc gouging (air-carbon arc cutting), ideal for rapid removal of thick metal (steel, copper, aluminum, etc.) by melting and blowing away material.

SPECIFICATIONS
MKGT- 4000
Amperage:	Maximum 1000 Amps
Compressed Air:	Pressure – 80 PSI (5.6 kg/cm²) Flow Rate – 28 cfm
Torch & Cube Weight:	5.4 lbs (2.4 kg)
Accepts Carbons:	Pointed – 5/32″ (4mm) to 1/2″ (13mm) Flat – 3/8″ (10mm) to 5/8″ (16mm)

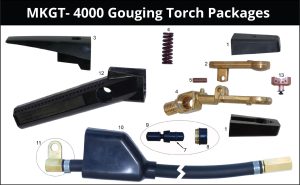

MKGT- 4000 Replacement Parts
No.	Description	G4000 Part No.
1	Insulator Assembly (w/Screws)	G94-433-183
2	Upper Arm	G94-048-088
3	Lever Assembly (w/Screw)	G94-476-066
4	Torch Body	G94-103-206
5	Hinge Pin	G94-632-094
6	Spring	G94-800-077
7	O-Rings Only	G94-710-036
8	Bonnet	G94-104-012
9	Spool with Bonnet	G94-104-016
9	Spool Assy w/O-Rings	G94-801-011
10	Insulating Boot	G94-105-014
11	Air / Power Connector	G94-170-150
12	Handle	G94-370-163
13	Head	G94-378-368
