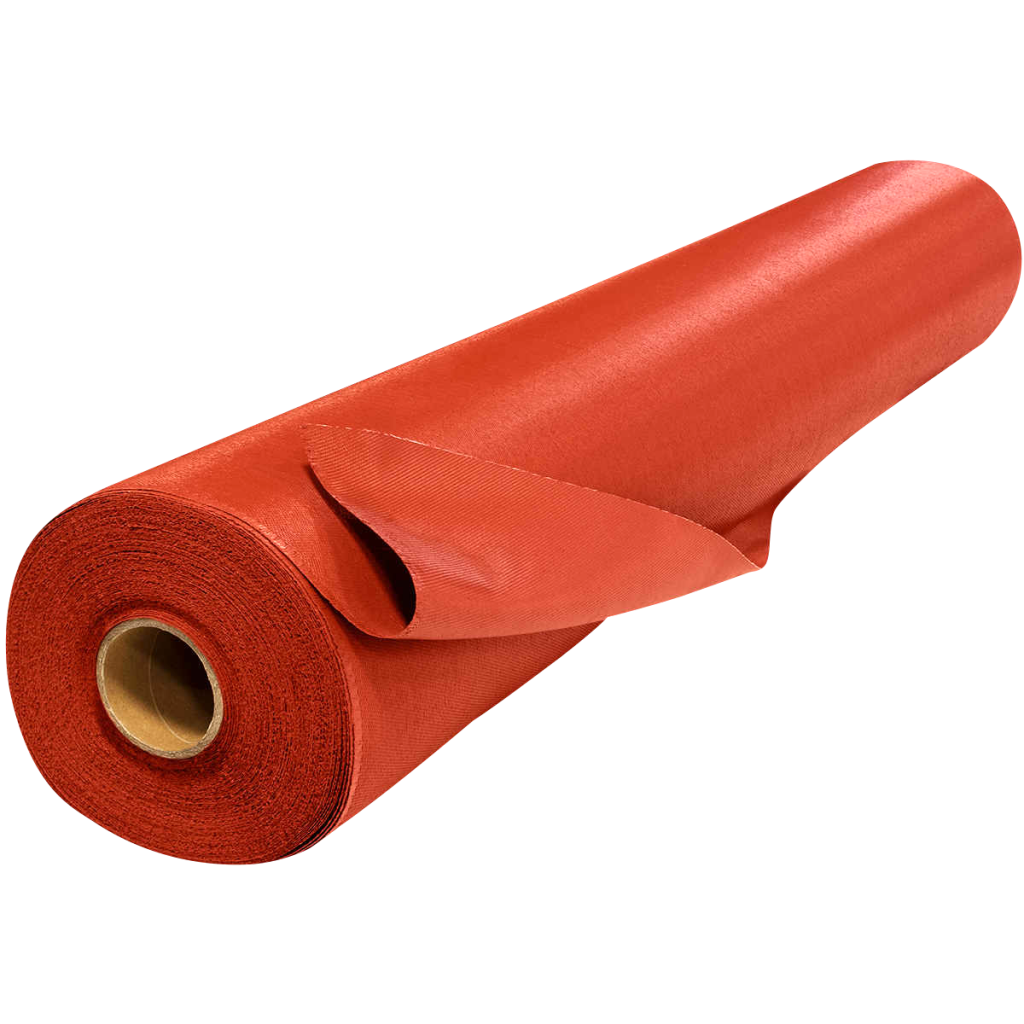

ACRYLIC COATED FIBERGLASS FABRIC DOUBLE SIDES Fire Blanket

ACRYLIC COATED FIBERGLASS FABRIC DOUBLE SIDES Fire Blanket

  • Model Number -
This type of acrylic coated fiberglass fabric has good resistance to abrasion, cuts and allergen as well as adhisive surface, it is fire protection and environment protection, It is widely used in welding, molten metal splash protection. It is available in a wide variety of fabricated forms including fire curtain, expansion joints, fire blanket, welding blankets, etc.

Product Identification:

PRODUCT NAME: ACRYLIC COATED FIBERGLASS FABRIC DOUBLE SIDES
MATERIALS INCLUDING: ACR-MAKS-43-146PK / ACR-MAKS-43-1546PK
CHEMICAL NAME AND SYNONYMS: Acrylic coated fiberglass.
CHEMICAL FAMILY: Acrylic coating/fibrous glass.



Hazardous Ingredients:

PIGMENTS : N/A BASE METAL : N/A ALLOYS : N/A
CATALYST : N/A METALLIC COATINGS : N/A ADDITIVES : N/A
SOLVENTS : N/A FILLER METAL : N/A COATING OR CORE PLUS : N/A

OTHERS: Hazardous mixture of other liquids, solids, or gases. Liquid coating contains Cj’s

Dimethylpolysiloxane :  less than 2%, TLV units not known.

While this material is in the coating base, the vulcanized state precludes it from being hazardous.



Physical Data:

BOILING POINT (f) N/A
VAPOR PRESSURE N/A
VAPOR DENSITY (Air = 1) N/A
SOLUBILITY IN WATER N/A
APPEARANCE AND ODOR ACRYLIC COATED FIBERGLASS FABRIC DOUBLE SIDES
SPECIFIC GRAVITY (H2O = 1) 1.1
PERCENT VOLATILE BY VOLUME (%) N/A
EVAPORATION RATE N/A



Fire And Explosion Hazard Data:

FLASH POINT N/A
EXTINGUISHING MEDIA Coating only – All standard fire fighting media.
SPECIAL FIRE FIGHTING PROCEDURES Coating only – normal smoke protection
UNUSUAL FIRE AND EXPLOSION HAZARDS None

Health Hazard Data

THRESHOLD LIMIT VALUE: NOISH classifies fibrous glass as a nuisance particulate.
EFFECTS OF OVEREXPOSURE: Recommended TLV 3×106 fibers/m3. Not listed as a carcinogenic



Emergency First Aid Procedures

INHALATION: None required.
SKIN: Wash with soap and running water.
EYES: Flush with running water for at least 15 minutes.



Reactivity Data

STABILITY Stable
INCOMPATIBILITY (Materials to avoid) None
HAZARDOUS DECOMPOSITION PRODUCT Will not occur
HAZARDOUS POLYMERIZATION Will not occur
CONDITIONS TO AVOID None



Spill or Leak Procedures:

STEPS TO BE TAKEN IN CASE MATERIAL IS RELEASED OR SPILLED: N/A WASTE DISPOSAL
METHOD: Consult certified
material disposal contractor.

1 ITEM ACR-MAKS-43-146PK / ACR-MAKS-43-1546PK
2 WEAVE 3X1 TWILL TEST METHOD
3 YARN
TEX		 WARP CC 11 134 ISO 4602
WEFT CC 11 134
4 WIDTH 10
152m		 DIN EN 1773
5 CLOTH WEIGHT 430 g/m2±10g DIN EN 12127
6 COATING 2 SIDES ACRYLIC COATING 30GSM
PINK/RED COLOR
7 TOTAL WEIGHT 460 g/m2±10g DIN EN 12127
8 TOTAL THICKNESS 0.43±0.03mm DIN EN ISO 5084
9 THREAD
COUNT		 WARP 18±0.1 per cm DIN EN 1049-2
WEFT 13±0.1 per cm DIN EN 1049-2
10 TENSILE
STRENGTH
MIN		 WARP 4000 N/50mm EN ISO 13934-1
WEFT 3000 N/50mm EN ISO 13934-1
11 MAX TEMPERATURE RESISTANT BASIC FABRIC 600°C
SHORT TERM 800°C

Special Protection Information

RESPIRATORY PROTECTION INFORMATION Dust mask if material is machined
LOCAL EXHAUST N/A
MECHANICAL (General) N/A
PROTECTIVE GLOVES As required
EYE PROTECTION Industrial regulations require eye protection at all times
OTHER PROTECTIVE EQUIPMENT As required
OTHER N/A
SPECIAL N/A
